Adding Girts and Horizontal Bracing

Construction is nearing completion as the horizontal bracing “girts” are added to the structure to provide strength to the vertical┬ábents as this forms amazing rigidity to the structure.

Threading the 32 ft long 8″ x 8″ long timbers through the openings in the trestle bents was challenging.

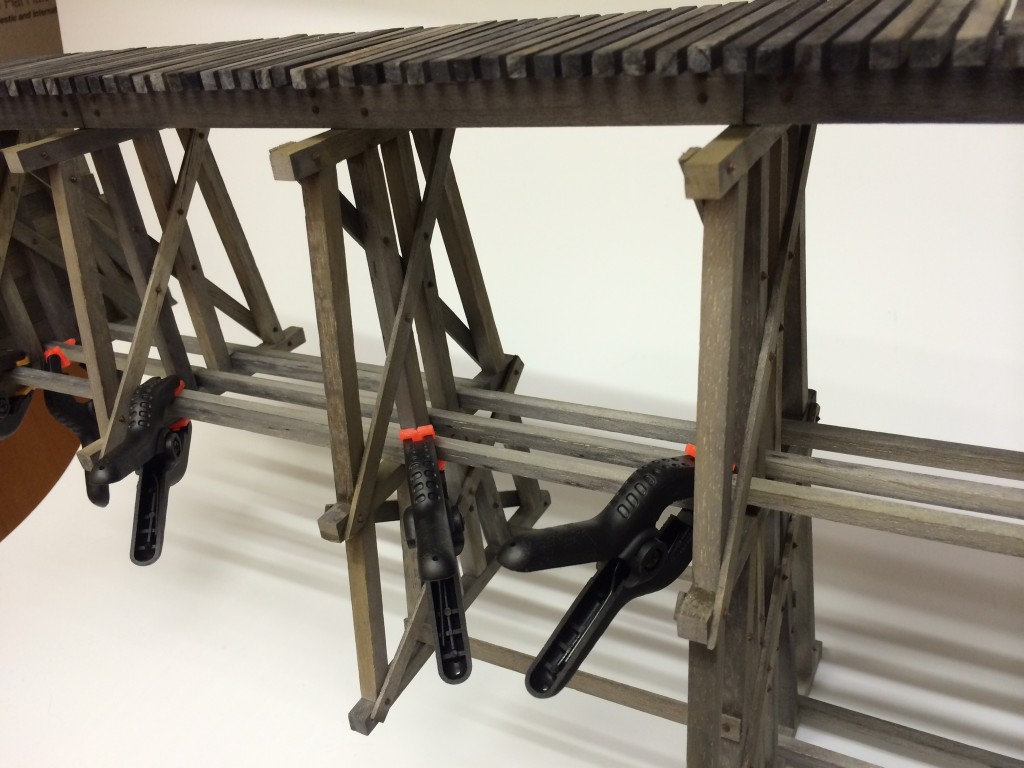

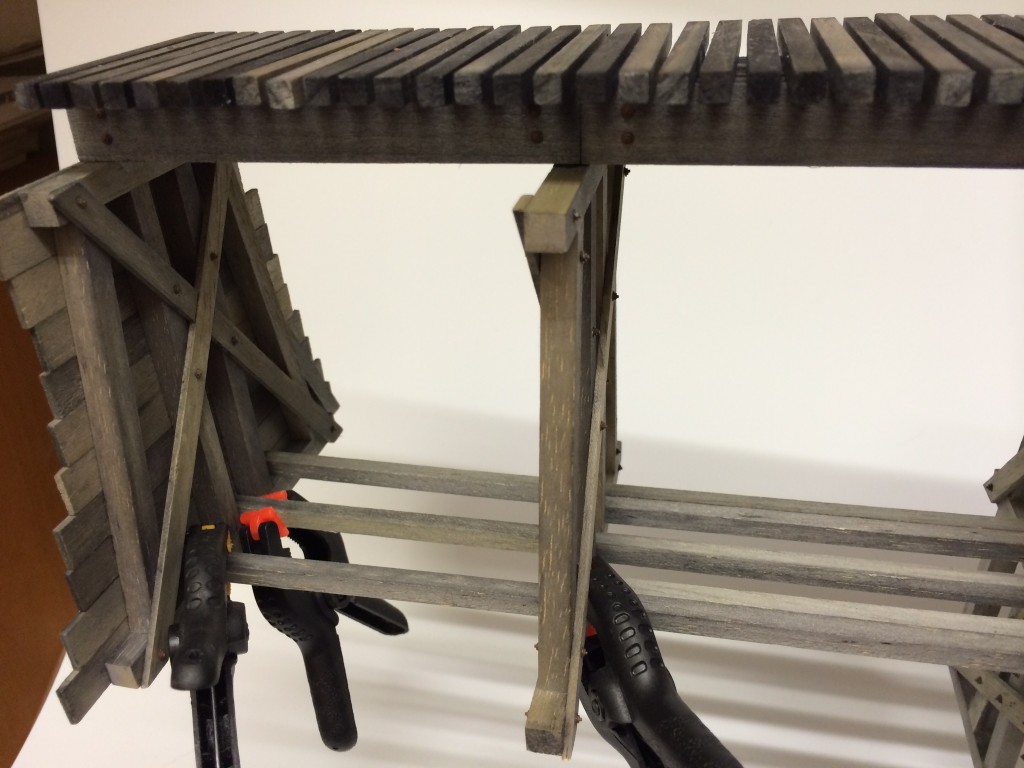

Attaching Girts

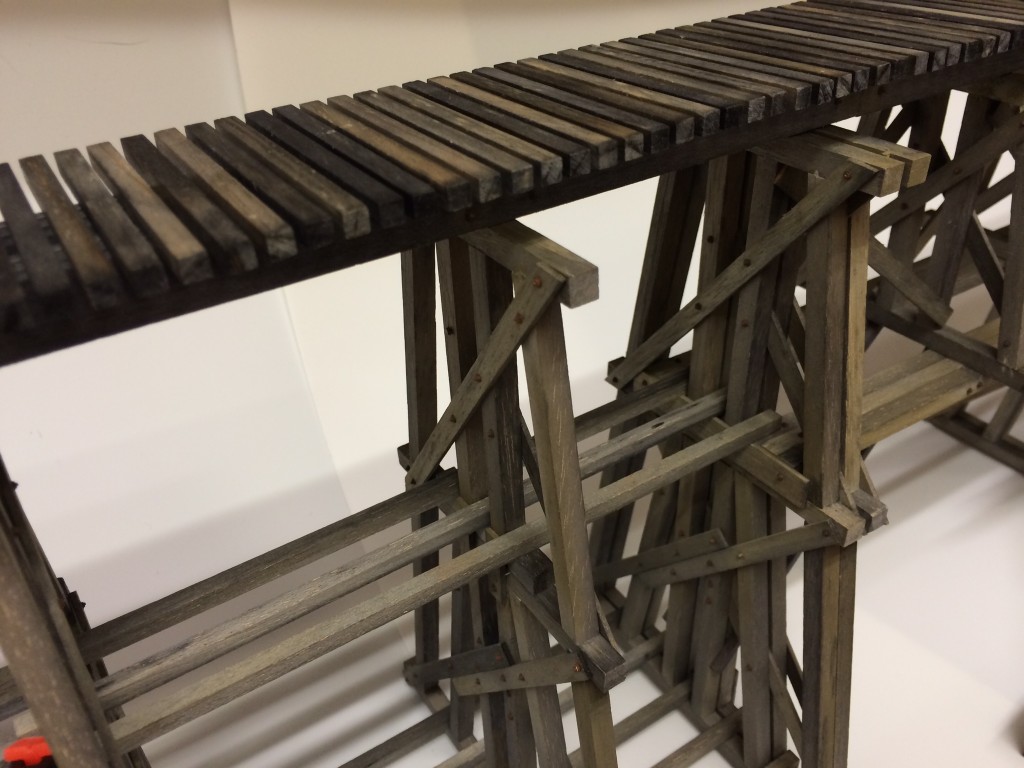

Horizontal Bracing

Horizontal Bracing 2

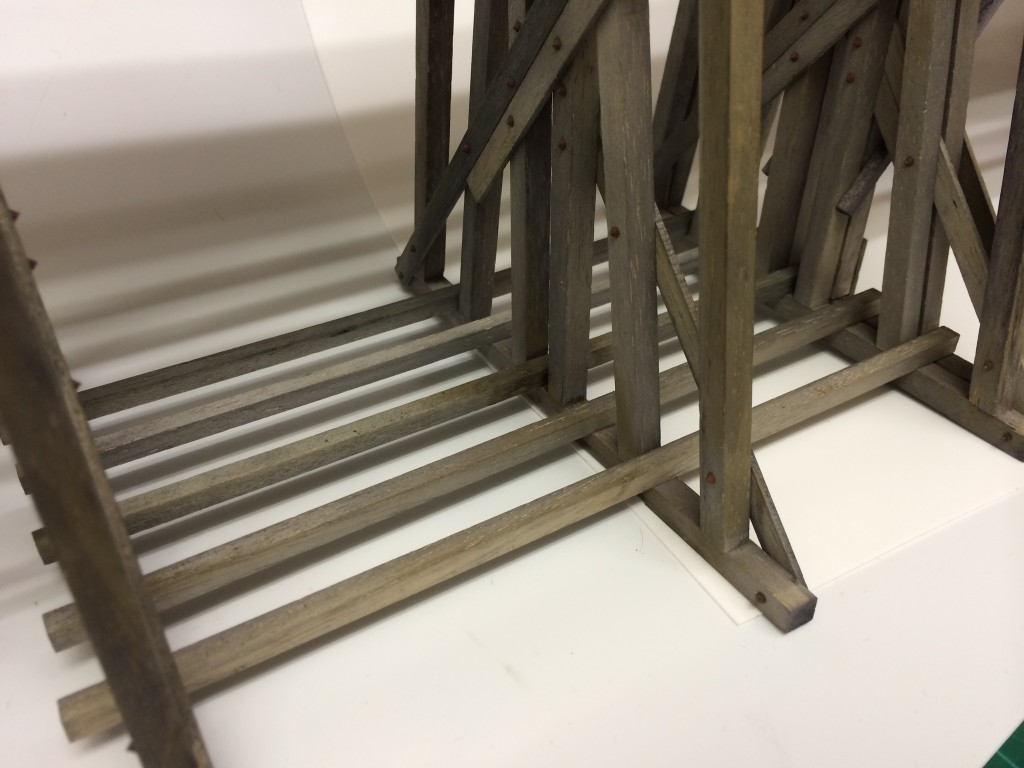

Bottom Bracing

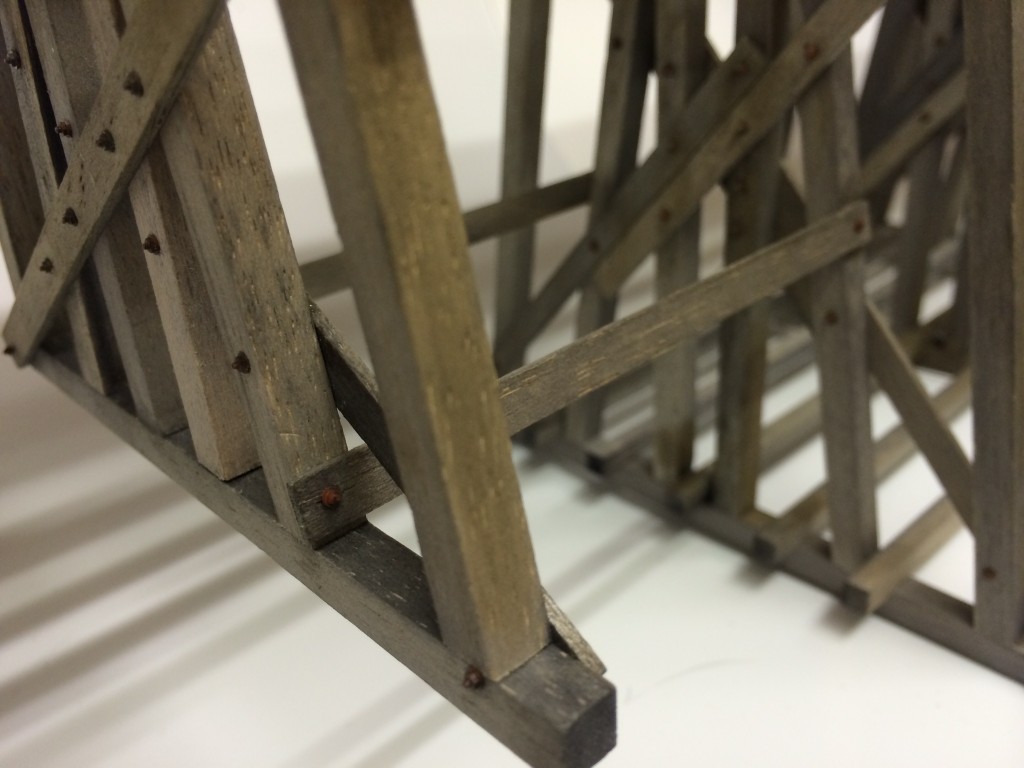

Intermediate Bracing Detail

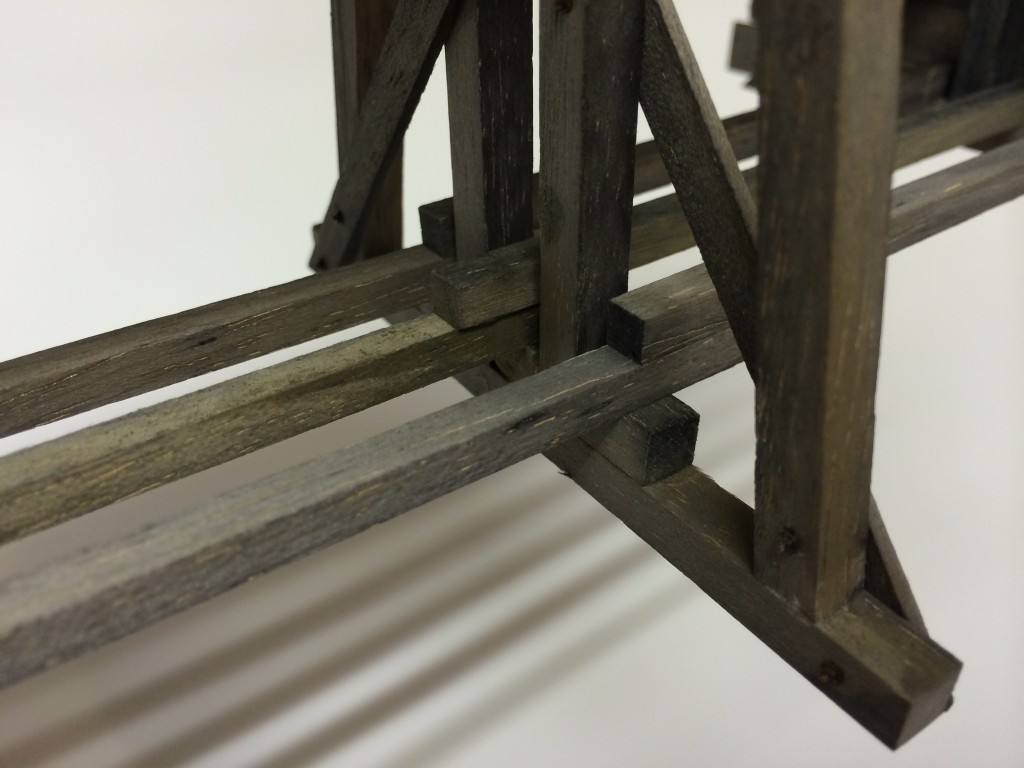

Bracing Detail
